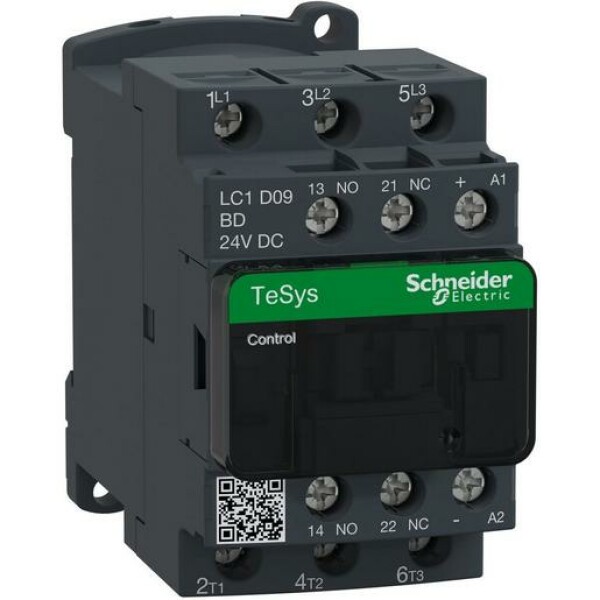

APC Leistungsschütz 9A 24V DC LC1D09BD
delivery time: Im Versandlager lagernd - versandbereit in 24-48 Stunden
Product.Nr.: LC1D09BD
weight: 1 kg
Manufacturer:
Schneider Electric
Bewertung:
EUR
81.68
EUR81.68
incl. 20 % VAT
Produktbeschreibung
Gleichspannungsbetätigt 24 V DC mit integrierter
Schutzbeschaltung - 2 Hilfsschalter: 1S + 1Ö TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
General
Type
Power Contactor
Colour
Blue; Green
Technical specifications
Number of built-in closers
3
Control voltage from/to DC
24 - 24 V/DC
IP protection class
IP20
Measurements / weight
Measurements
45 x 77 x 95 mm
